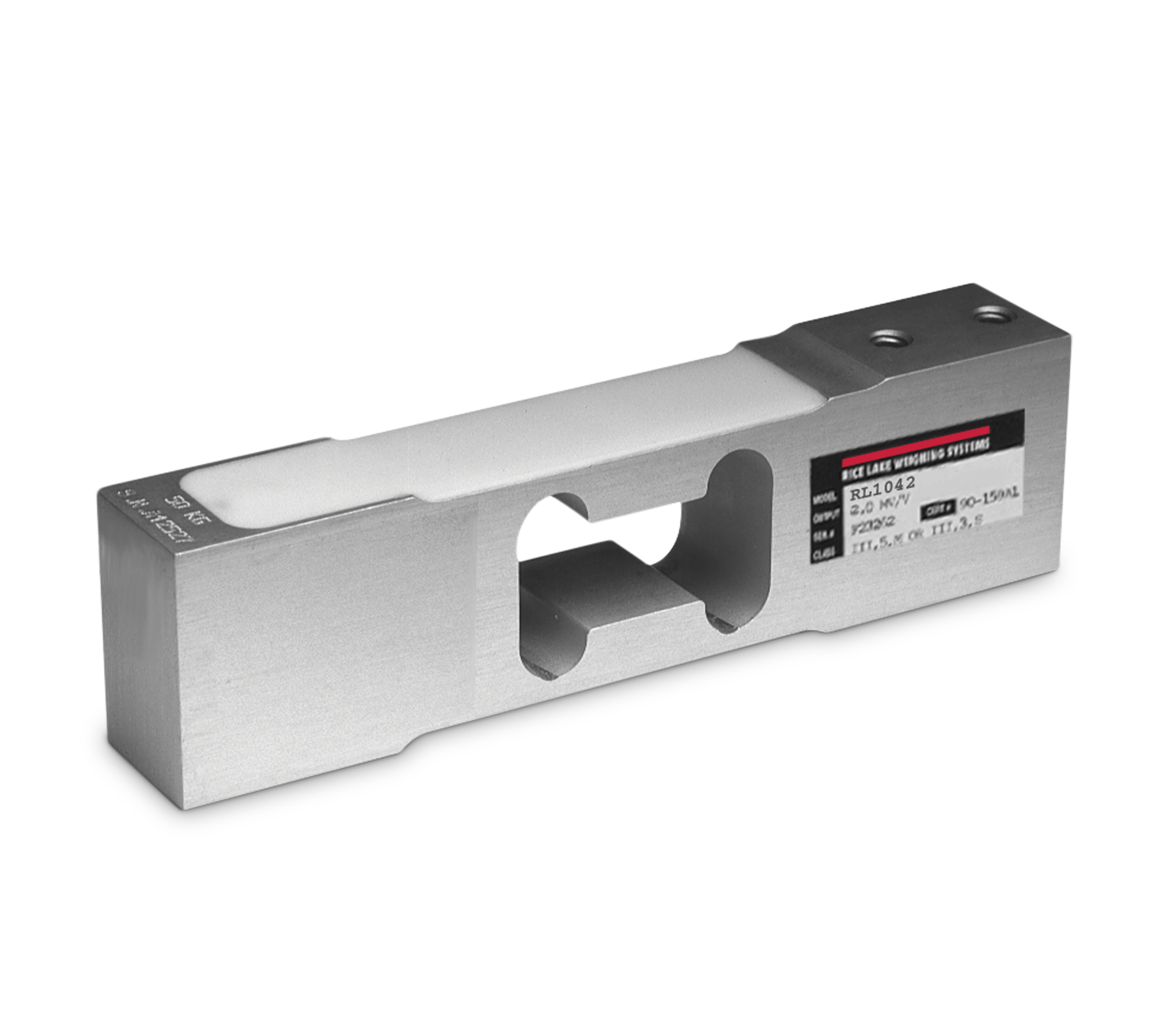

• RL1042 Aluminum Single Point Load Cells
A low-profile single point for platform weighing, this model is constructed of aluminum, and is a two-beam design. This design offers high immunity to side forces and is specially coated to provide humidity resistance. The unit is available in a capacity range from 2.2 to 220.5 lb (1 to 100 kg). Complete with 10'/3.1 m load cell cable.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Full Scale Output

Output Resistance

Cable Length

Load Rating

N/A 1 Kilogram (kg) Load Rating RL1042 Aluminum Single Point Load Cell N/A 2.0 mV/V N/A 350 ohm N/A 3.1 m10 ft N/A 1 kg2.2 lb
N/A 10 Kilogram (kg) Load Rating RL1042 Aluminum Single Point Load Cell N/A 2.0 mV/V N/A 350 ohm N/A 3.1 m10 ft N/A 10 kg22 lb
N/A 100 Kilogram (kg) Load Rating RL1042 Aluminum Single Point Load Cell N/A 2.0 mV/V N/A 350 ohm N/A 3.1 m10 ft N/A 100 kg220.5 lb
